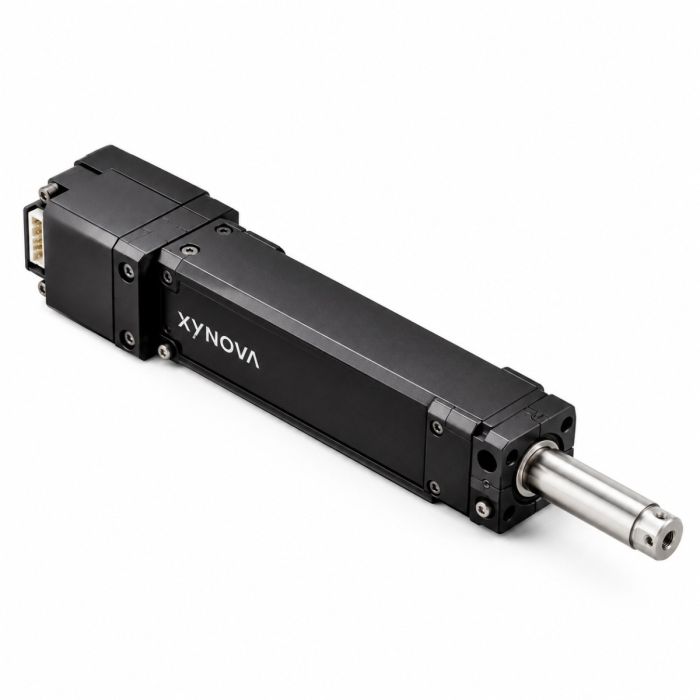

Xynova PRM10-20-64-75-F Linear Actuator
In stock
- ব্র্যান্ড:
- XYNOVA
- মডেল:
- PRM10-20-64-75-F
- ORIGIN:
- চীন
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Xynova-PRM10-20-64-75-F
Xynova PRM10-20-64-75-F Linear Actuator
In a robot finger, speed is what makes a hand feel alive. A grasp that closes too slowly looks mechanical and misses moving objects, while one that snaps shut too hard crushes them. The Xynova PRM10-20-64-75-F sits at the fast end of the PRM10 family, trading peak force for the quickest stroke in the series, all inside a cylinder narrower than a pencil and lighter than a few coins.
Key Features
Fastest Speed in the PRM10 Series
With a no load speed of at least 64 mm/s and a full load speed of at least 25 mm/s, this model shares the top speed of the PRM10 line. It is the choice when quick finger closure or rapid joint motion matters more than maximum push force.
Planetary Roller Screw Drive
Instead of a conventional lead screw, Xynova uses an in house 7 mm micro planetary roller screw. Roller screws spread the load across many contact points, which improves transmission efficiency, load capacity and service life. Xynova also notes that the design allows the joint to self lock, so it holds position if power is lost.
In House Hollow Cup Motor
A brushless hollow cup motor developed by Xynova delivers more output in a smaller size. A proprietary winding process improves slot filling, which raises thrust density and efficiency.
Precise, Adaptive Control
Repeatability of ±0.04 mm keeps motion consistent from cycle to cycle. Xynova pairs the hardware with a decoupled adaptive control architecture, AI driven parameter tuning and an in house position encoding method to balance fast response with steady state accuracy.
Low Power, Compact Footprint
The actuator runs on 12 V DC, draws just 0.05 A at rest and fits in a 10 x 13.5 x 81 mm envelope at no more than 34 g.
Xynova PRM10-20-64-75-F Specifications
| Specification | PRM10-20-64-75-F |
|---|---|
| Series | PRM10 micro electric cylinder |
| Effective stroke | 19 mm (+1%) |
| Maximum thrust | ≥75 N |
| No load maximum speed | ≥64 mm/s |
| Full load speed | ≥25 mm/s |
| Size (L x W x H) | 10 x 13.5 x 81 mm |
| Weight | ≤34 g |
| Operating voltage | 12 V DC ±10% |
| Repeatability | ±0.04 mm |
| Static current | 0.05 A |
| No load current | 0.5 A |
| Operating temperature | -15 to 60 °C |
| Drive | Hollow cup motor with 7 mm planetary roller screw |
How It Compares Within the PRM10 Series
| Model | Stroke | Max thrust | No load speed | Weight |
|---|---|---|---|---|
| PRM10-20-64-75-F | 19 mm | ≥75 N | ≥64 mm/s | ≤34 g |
| PRM10-25-64-75-F | 24 mm | ≥75 N | ≥64 mm/s | ≤38 g |
| PRM10-20-47-100-F | 19 mm | ≥100 N | ≥47 mm/s | ≤34 g |
| PRM10-20-34-150-F | 19 mm | ≥150 N | ≥34 mm/s | ≤34 g |
| PRM10-20-18-200-F | 19 mm | ≥200 N | ≥18 mm/s | ≤38 g |
Applications
- Dexterous robot hands: fast finger flexion where quick, responsive grasping is the priority.
- Humanoid wrists and small joints: compact linear drive for lightweight articulation.
- Prosthetics and exoskeleton research: low weight and 12 V operation suit wearable prototypes.
- Micro automation: small pick, push and positioning tasks in lab and benchtop equipment.
- Education and research platforms: a precise, compact actuator for mechatronics teaching and prototyping.
Who Should Buy the PRM10-20-64-75-F?
Buy this model if your design needs speed first and moderate force second. It suits hand designers, humanoid builders and research teams who want the fastest PRM10 response in the shortest, lightest housing. If you need more travel at the same speed, look at the 24 mm stroke PRM10-25-64-75-F. If you need more push, step up to the 100 N, 150 N or 200 N versions.
Which Should You Buy?
| If you need... | Choose |
|---|---|
| Maximum speed in the shortest, lightest body | PRM10-20-64-75-F |
| Maximum speed with more stroke | PRM10-25-64-75-F |
| A balance of speed and force | PRM10-20-47-100-F |
| Higher force for firm grips | PRM10-20-34-150-F |
| Maximum force | PRM10-20-18-200-F |
Before You Buy
- Check your force budget: confirm that 75 N covers your peak load with a safety margin, especially for grasps that must hold under impact.
- Confirm stroke: 19 mm of travel suits most finger linkages. Use the 24 mm version if your mechanism needs more.
- Plan power: budget for 12 V DC supply and the 0.5 A no load current per actuator when sizing your power system.
- Request mounting drawings: confirm end fittings and mounting points before designing brackets.
- Quote the full set: a dexterous hand can use many actuators, so request pricing for the exact quantity you need.
Pricing and Availability
The Xynova PRM10-20-64-75-F is sold by quote. Add it to your quote from this page with the quantity you need, and our team will reply with current price, cost details and lead time. The actuator carries a 12 month warranty, and availability depends on production allocation.
Frequently Asked Questions
What is the Xynova PRM10-20-64-75-F?
It is a micro electric cylinder from Xynova's PRM10 series, delivering at least 75 N of thrust and 64 mm/s no load speed over a 19 mm stroke in a body weighing no more than 34 g.
What voltage does the PRM10-20-64-75-F use?
It operates on 12 V DC with a tolerance of ±10%.
How accurate is the PRM10-20-64-75-F?
Xynova specifies repeatability of ±0.04 mm.
Does the actuator hold position without power?
Xynova states that the planetary roller screw design allows the joint to self lock, helping it hold position if power is lost.
What is the difference between the PRM10-20-64-75-F and PRM10-25-64-75-F?
Both share 75 N thrust and 64 mm/s speed. The 20 version has a 19 mm stroke and weighs up to 34 g, while the 25 version offers a 24 mm stroke and weighs up to 38 g.
How much does the Xynova PRM10-20-64-75-F cost?
Pricing is by quote. Request a quote on this page for current price and cost based on your quantity.
Where can I buy the Xynova PRM10-20-64-75-F?
You can buy it right here on this page. Add it to your quote and our team will follow up with pricing and availability.
Summary
The Xynova PRM10-20-64-75-F is the fast, compact member of the PRM10 family. A planetary roller screw, an in house hollow cup motor, 64 mm/s speed and ±0.04 mm repeatability make it a strong choice for responsive robot fingers and small humanoid joints. If you are ready to buy micro linear actuators for your next design, request a quote on this page for current price and availability.
