Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot
In stock
- BRAND:
- DEEP ROBOTICS
- PART #:
- DR02
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Deep-Robotics-DR02
US$75,600.00

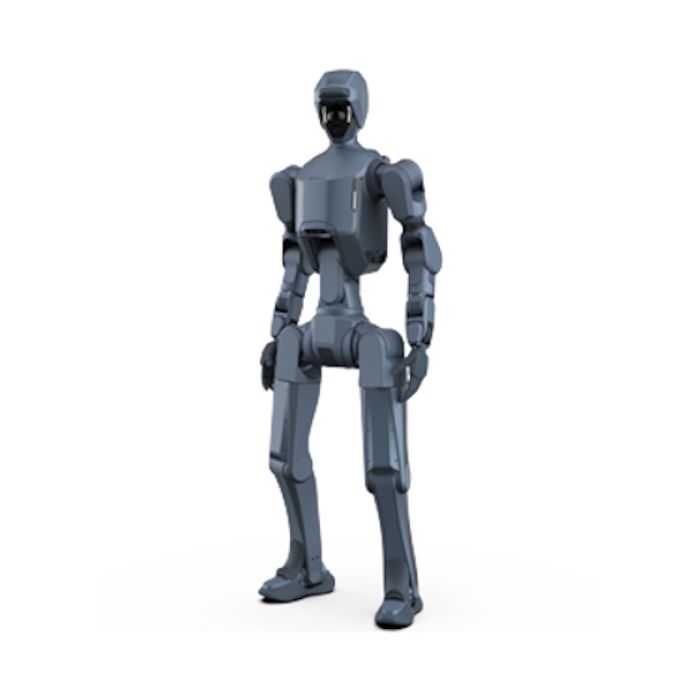

Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot
A New-Generation Industrial-Level Humanoid Robot. As the world's first humanoid robot with an IP66 protection rating capable of all-weather outdoor operations, the DR02 provides reliable and efficient intelligent solutions for various industries, redefining the application boundaries for industrial-level humanoid robots.
Full-Body Waterproof and Dustproof for All-Weather Outdoor Operations
The DR02's core innovation is its IP66 full-body waterproof and dustproof rating, making it the world's first industrial-level, all-weather humanoid robot. It is the first full-size humanoid robot capable of adapting to complex environments such as rain, humidity, and dust, overcoming the core industry pain point where robots are rendered inoperable by environmental constraints in complex scenarios.
Wide Operating Temperature Range
With a wide operating temperature range of -20°C to 55°C, the DR02 can transition seamlessly between dry factories and rainy outdoor environments, or from low-temperature cold storage facilities to high-temperature workshops. This enables true "all-weather, all-time, all-scenario" continuous operation.
High Motion Performance for Diverse Application Environments
To maximize compatibility with existing human workspaces, the DR02 features a highly human-like design, making it more compatible with the tools and spaces used in daily human operations. It achieves stable traversal across various basic complex terrains and is capable of handling practical tasks such as cargo transport and emergency.
Equipment Delivery Modular Quick-Detach Design + High Computing Power for Easy Maintenance and Intelligent Evolution
To ensure long-term value and efficient operation & maintenance (O&M), the DR02 features an innovative modular quick-detach and quick-replace design. Core components such as forearms, full arms, and full legs support rapid removal and replacement, significantly reducing O&M costs and downtime while providing robust support for continuous operation scenarios.
Specifications
31
Degrees of Freedom
4
m/s
Max Speed
20
kg (44.1 lbs)
Payload
General
BRAND
DEEP ROBOTICS
PART #
DR02
ROBOT TYPE
HUMANOID
ROBOT USE
INDUSTRIAL
Physical
HEIGHT
175.0 cm
WEIGHT
65 kg
FOREARM + UPPER ARM LENGTH
68.0 CM
Mobility
TOTAL DOF
31 DOF
HEAD / NECK
2 DOF
ARM
7 DOF
LEG
6 DOF
Performance
MAXIMUM SPEED
4 METERS / SECOND
OPERATING SPEED
1.5 METERS / SECOND
MAXIMUM PAYLOAD
20 KG (44.1 LBS)
MAXIMUM ARM PAYLOAD
10 KG
SINGLE HAND LOAD
10 KG
SLOPE ANGLE
20 DEGREES
STAIR CLIMBING HEIGHT
25 CM
OPERATING TEMPERATURE
-20°C TO 55°C
INGRESS PROTECTION
IP 66
Computing
GPU
275 TOPS
Sensors
3D LIDAR
3D LIDAR
What's included
Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot (DR02)
